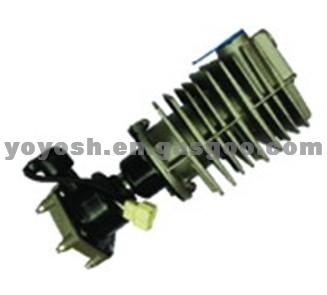

Condenser/Separator 41210029

Product Name:

Condenser/Separator 41210029

Product Attribute:

Material:Aluminium

Application:

VW, BENZ, VOLVO, SCANIA

Product Description:

Removes oil, liquid and other contaminates prior to passage through the air system.
Purges contaminants with each brake application.
Reduces corrosion and possible failure of air system components caused by contamination.Substantially increases air dryer desiccant life expectancy.

Notes:
1.) Approximate Weight: 4.25 lbs.
Port Sizes: 1/2" - 14 NPTF
Rate Voltage & Power Consumption: 24 Volt/0.5 AMP
2.) Height: 10"
3.) "
4.) Drain Capacity: 1.3cc/purge @ 116 psi
5.) Mounting Position: Vertical
6.) Maximum Operating Pressure: 290 PSI
7.) Inlet Temperature: -40 to 175 degress F
Heater Type: 24 Volt
